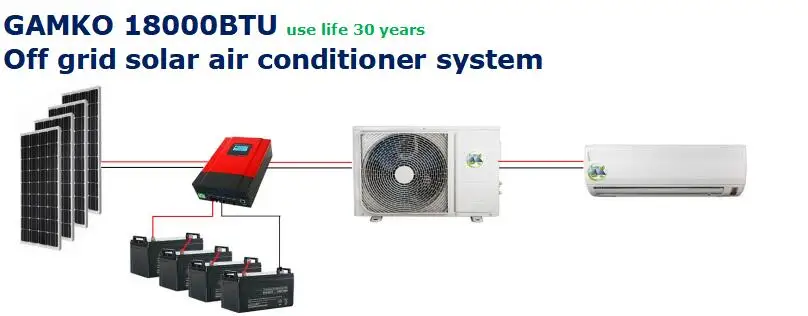

18000 BTU DC48V Off-Grid Solar Air Conditioner: 100% Solar, Uses Battery at Night
$4,800.60
333 in stock

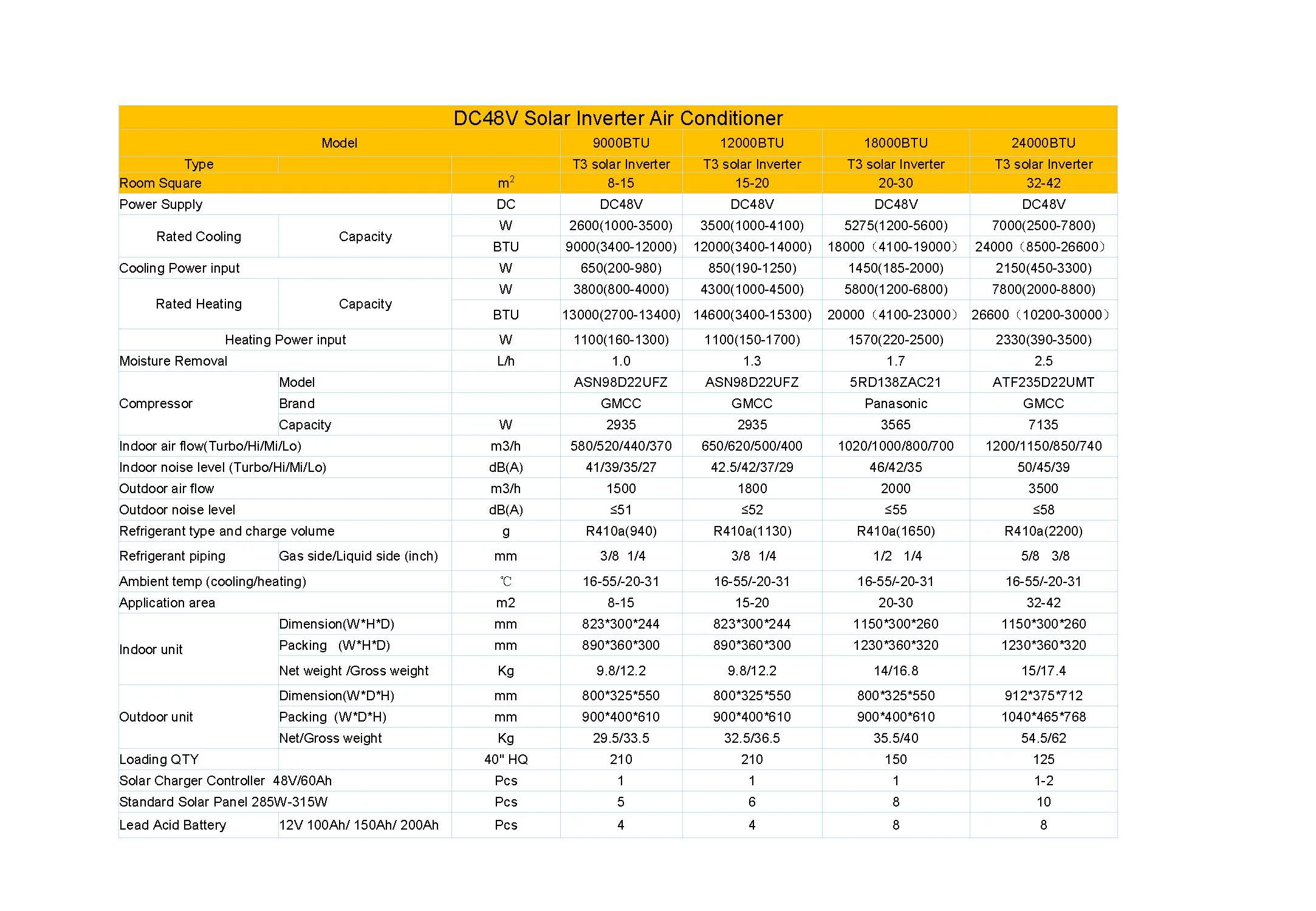

Technical data sheet
|
|
9000btu
|
12000btu
|
18000btu
|
24000btu
|
|||
|
|
1HP(1.5TON)
|
1.5HP(1TON)
|
2HP(1.5TON)
|
3HP(2TON)
|
|||
Model Number
|
|
DGWG2-ACDC-09K
|
DGWG2-ACDC-12K
|
DGWGV-ACDC-18K
|
DGWGV-ACDC-24K
|
|||
Power Supply 100%AC /100% DC / AC+DC
|
AC power
|
1 Ph 200-240V,50/60HZ
|
||||||
DC power PV, series connection
|
80-350V DC
|
|||||||
Specification
|
Suitable Room Square Meter
|
15 Less
|
15-25
|
20-30
|
32-42
|
|||
Outdoor Suitable Temperature ℃
|
-15 to 56
|
-15 to 49
|
-15 to 49
|
-15 to 49
|
||||
Indoor Setting Temperature ℃
|
16 to 32
|
16 to 32
|
16 to 32
|
16 to 32
|
||||
Cooling Capacity Btu
|
9000(3400-12180)
|
12000(3400-12911)
|
17000(4100-18776)
|
22000(8500-24907)
|
||||
Cool Consumption W
|
681(200-1120)
|
1096(210-1430)
|
1553(200-1994)
|
2009(470-2600)
|
||||
Heating Capacity Btu
|
11942(2700-12191)
|
13648(3400-15989)
|
16377(4100-17742)
|
23000(10200-24566)
|
||||
Heat Consumption W
|
1045(160-1162)
|
1143(170-1295)
|
1476(235-2080)
|
2360(410-2358)
|
||||
EER(W/W) (BTU/W)
|
3.87/13.21
|
3.2/10.90
|
3.2/10.90
|
3.2/10.90
|
||||
COP(W/W) (BTU/W)
|
3.35/11.42
|
3.40/11.6
|
3.2/10.90
|
3.20/10.90
|
||||
Dehumidifier L/h
|
1.3
|
1.5
|
2.1
|
2.3
|
||||
Refrigerant / g
|
R410A/ 740g
|
R410A/ 980g
|
R410A/ 1180g
|
R410A/ 1800g
|
||||
Compressor (Inverter DC)
|
TOSHIBA/ GMCC Rotary
|
TOSHIBA/ GMCC Rotary
|
TOSHIBA/ GMCC Rotary
|
PANASONIC 2XRotary
|
||||
Indoor Fan type
|
BLDC
|
BLDC
|
BLDC
|
BLDC
|
||||
Indoor Fan Consumption W
|
18w
|
18w
|
40w
|
40w
|
||||
Indoor Fan Speed (Turbo/High/Mid/Low)
|
1200/1100/1000/850
|
1300/1200/1100/950
|
1050/950/900/800
|
1350/1250/1150/1000
|
||||
Indoor Fan Air Flow m3/h
|
485/434/382/305
|
536/485/434/357
|
971/864/808/700
|
1250/1120/1000/850
|
||||
Indoor Noise Level dB(A)
|
41.7/38.8/33.0/31.6
|
44.6/42.6/36.3/35.0
|
44.3/41.5/38.8/36.8
|
51/50/47/42
|
||||
Indoor Evaporator Row
|
2
|
2
|
2
|
2
|
||||
Indoor Pipe Diameter
|
Ф7
|
Ф7
|
Ф7
|
Ф7
|
||||
Outdoor Fan type
|
BLDC
|
BLDC
|
BLDC
|
BLDC
|
||||
Outdoor Fan Consumption W
|
40w
|
40w
|
55w
|
75w
|
||||
Outdoor Fan Speed r/min
|
850
|
880
|
880
|
850
|
||||
Outdoor Condenser Row
|
1
|
1
|
1.5
|
2
|
||||
Outdoor Pipe Diameter
|
Ф7
|
Ф7
|
Ф7
|
Ф7
|
||||
Outdoor Fan Air Flow m3/h
|
1800
|
2000
|
2200
|
3320
|
||||
Outdoor Noise level dB(A)
|
≤52
|
≤52
|
≤55
|
≤58
|
||||
Pressure Mpa (Gas/Liquid)
|
4.3/1.1
|
4.3/1.1
|
4.3/1.1
|
4.3/1.1
|
||||
Connecting Pipe size (Gas/Liquid) Inch
|
3/8 1/4
|
3/8 1/4
|
1/2 1/4
|
1/2 1/4
|
||||
Connecting Pipe Max Length M
|
15
|
15
|
20
|
25
|
||||
Connecting Pipe Max Height M
|
8
|
8
|
10
|
10
|
||||
Dimension
|
Indoor unit / mm
|
790*210*280
|
790*210*280
|
1065×325×250
|
1065×325×250
|
|||
Indoor Package/ mm
|
860*345*290
|
860*345*290
|
1169×405×366
|
1169×405×366
|
||||
Indoor Weight (Gross/ Net) Kg
|
9.3/12.0
|
9.3/11.5
|
15.3/18
|
15.3/18
|
||||
Outdoor unit
|
802×564×323
|
802×564×323
|
802×564×323
|
900×700×337
|
||||
Outdoor Package
|
910*405*622
|
910*405*622
|
910*405*622
|
1006×418×755
|
||||
Outdoor Weight (Gross/ Net) Kg
|
30.0/34.0
|
31.5/35.5
|
36/40.0
|
48.0/53.0
|
||||
Loading QTY / 40 feet container
|
200
|
200
|
150
|
120
|
||||
Certification
|
As market request
|
CE/ CB/ ETL
|
CE/ CB/ ETL
|
CE/ CB/ ETL
|
CE/ CB/ ETL
|
Technical data sheet
Additional information
Origin | Mainland China |
---|---|
Place of Origin | jiangsu |
Brand Name | Gamko |
Model Number | DGG2-DC48V-18K |
Capacity (btu) | 9000 |
COP | 3.87 |
EER | 3.35 |
Power (W) | 2600 |
Voltage (V) | 48 |
After-sales Service Provided | Free spare parts, Return and Replacement |
Warranty | 3 years |
Type | Split Wall Mounted Air Conditioners |
Cooling/Heating | Cooling/Heating |
Application | Outdoor, Hotel, Household |
Power Source | Electric, Solar, Solar |
App-Controlled | Yes |
Fixed Frequency/Variable Frequency | Variable frequency |
Product Name | Air Conditioning |
Warranty for for whole unit | 2 years |
Refrigerant | R-410A |
Warranty for compressor | 5 years |
Color | White Solar Air Conditioner |
Indoor Size | 790*210*280mm |
Outdoor Size | 802*564*323mm |
Indoor Weight | 9.3kg |
Outdoor Weight | 30kg |
Use | Room |
Condition | New |
Certification | CB, ce, RoHS, SASO |
