12000 BTU Hybrid Solar Air Conditioner.
$1,484.22
9 in stock
Products Description

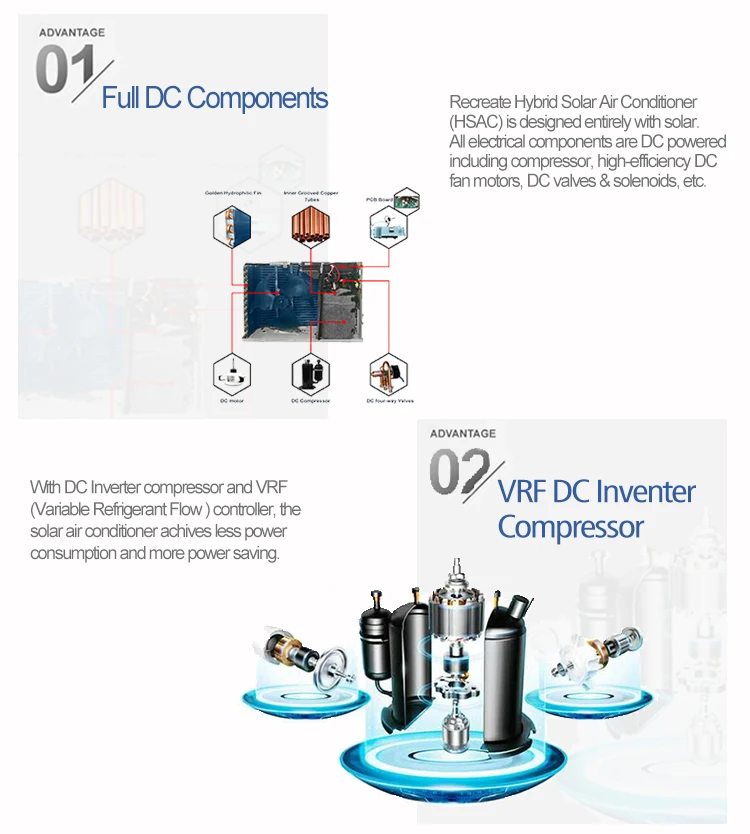

Our solar air conditioner is a unit with combination of both DC and AC. It can be powered directly by solar panels with all DC components and full DC technology. No external controller or inverter is needed. With a remote monitoring system built in,the customer can download App on the phone to turn it on and off, change the mode and wind speed. Besides, solar power and electricity consumption can be shown on the App as well so that people can obviously see how much electricity is saved.
There are three working modes to meet different application requirements

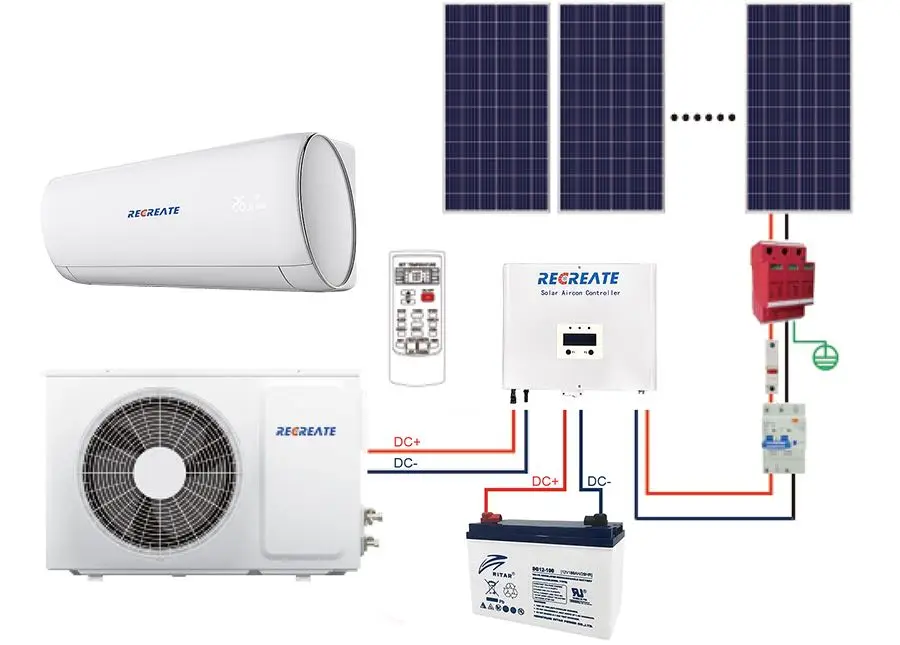

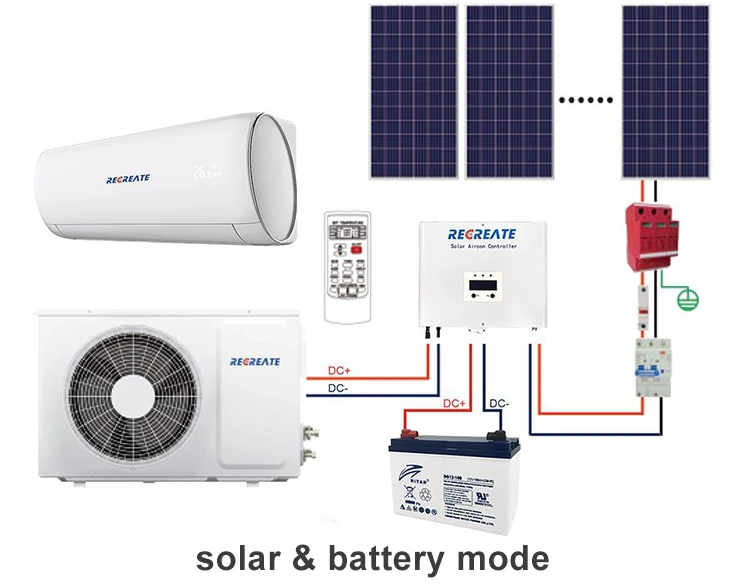

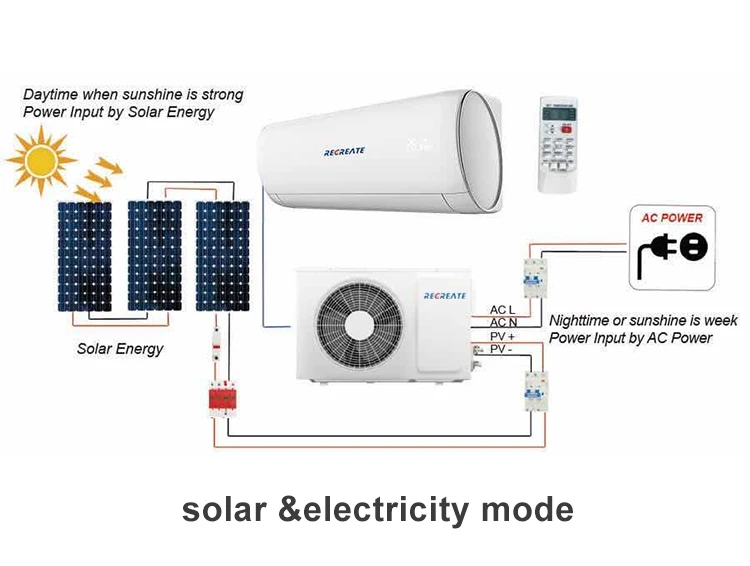

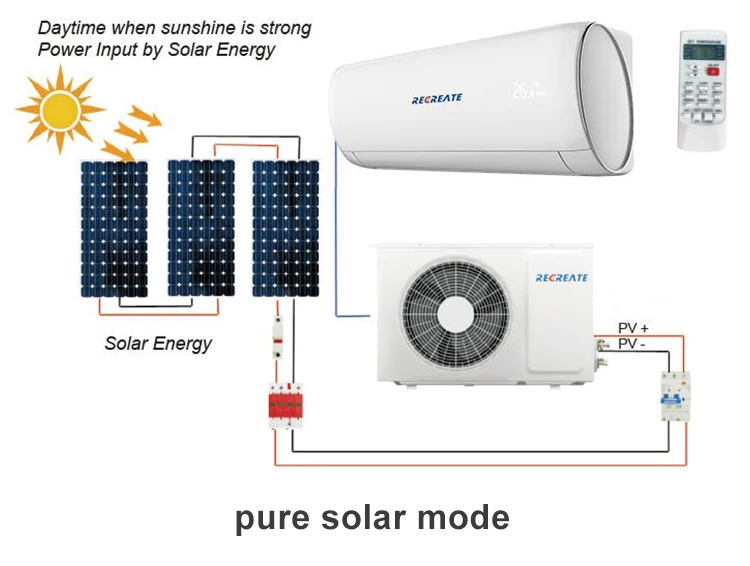

There are three working modes to meet different application requirements—Pure solar mode, Solar electricity mode and Solar & battery mode. Pure solar is good for working places without stable electricity, such as schools faraway, offices and so on; Solar&electricity is suitable for places where people want to save their electricity cost, such as banks, hospitals and school commercial sites. Solar & battery is a perfect choice for areas short of electricity, like outdoor movable houses, island hotels and desert campsites.
Configuration Details&Specification
|
Model No.
|
|
RC-ADC12GW-XA-R32
|
RC-ADC18GW-XA-R32
|
RC-ADC24GW-XA-R32
|
|||
|
Power Supply
|
Sloar Power
|
V
|
DC90-380V MAX .15A
|
||||
|
AC Power connected
|
V
|
180-240V(50/60Hz)
|
|||||
|
Cooling
|
Rated cooling capacity
|
Btu/h
|
12000
|
18000
|
24000
|
||
|
Cooling capacity Range
|
Btu/h
|
3482-13561
|
3681-18846
|
4594-24582
|
|||
|
Rated Power Input
|
KW
|
1.06
|
1.42
|
1.79
|
|||
|
Rated Current(AC)
|
A
|
4.28
|
5.96
|
8
|
|||
|
SEER
|
|
25
|
24
|
24
|
|||
|
Indoor Air Flow-(Hifan)
|
|
cfm
|
690
|
1080
|
1210
|
||
|
Indoor Noise dB(A)
|
|
dB/A
|
38
|
42
|
45
|
||
|
Max Refrigeration Pipe Length
|
|
ftm
|
15
|
15
|
15
|
||
|
Max Refrigeration Pipe Rise/Fall
|
|
ftm
|
5
|
5
|
5
|
||
|
Max Elevation Difference
|
|
|
15
|
15
|
15
|
||
|
Design Pressure
|
|
psig
|
600/345
|
600/345
|
600/345
|
||
|
Connection
|
Type
|
flare
|
flare
|
flare
|
|||
|
Connection Wiring
|
AWG
|
4*18AWG
|
4*18AWG
|
4*18AWG
|
|||
|
Operation Tenmperature
|
Indoor(Cooling/Heating)
|
℉
|
60.8-89.6/60.8-89.6
|
60.8-89.6/60.8-89.6
|
60.8-89.6/60.8-89.6
|
||
|
Outdoor(Cooling/Heating)
|
℉
|
50-125.6/5-104
|
50-125.6/5-104
|
50-125.6/5-104
|
|||
|
Indoor Unit
|
Dimension(W*D*H)
|
mm
|
850*190*292
|
960*215*300
|
1042*220*320
|
||
|
Packing(W*D*H*)
|
mm
|
910*265*350
|
1015*265*360
|
1135*305*395
|
|||
|
Net/Gross Weight
|
Kg
|
9.2/12
|
12.5/14.5
|
15.5/17.5
|
|||
|
Outdoor Unit
|
Dimension(W*D*H)
|
mm
|
795x290x555
|
790x290x555
|
860x304x733
|
||
|
Packing(W*D*H*)
|
mm
|
910*400*630
|
910*400*630
|
910*400*630
|
|||
|
Net/Gross Weight
|
Kg
|
31/35
|
35/39
|
51/55
|
|||
|
Approvals
|
|
CB/CE/GCC/SOAO/ETL Performance Certified
|
|||||
|
Container Load 20’/40’/40’HQ
|
|
84/174/216
|
78/171/212
|
54/118/131
|
|||

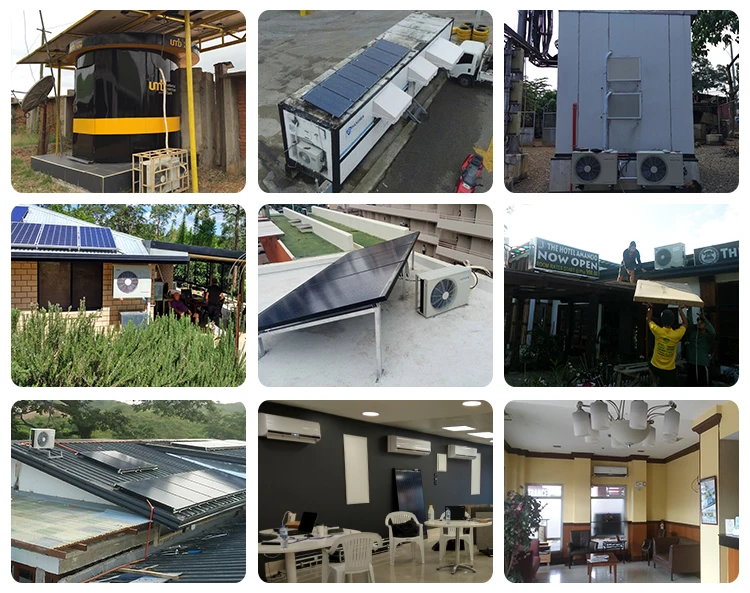

Application
Additional information
| Origin | Mainland China |
|---|---|
| Place of Origin | China |
| Brand Name | Albugreen |
| Model Number | RC-ADC12GW-XA |
| Application | Household, Car, Hotel, Commercial,Household,Restaurant |
| Cooling/Heating | Cooling/Heating |
| Capacity (btu) | 12000btu |
| Product name | Solar air conditioner |
| Voltage | 90-380V |
| Solar panel | 275-340w |
| Feature | 100% Solar Energy |
| cooling capacity | 12000btu |
| Type | Split Wall Mounted Air Conditioner |
| Refrigerant | R32 |
| Certificate | CE/CB/EMC/IEC/GCC/SASO |
| Power source | Electric, Solar |
