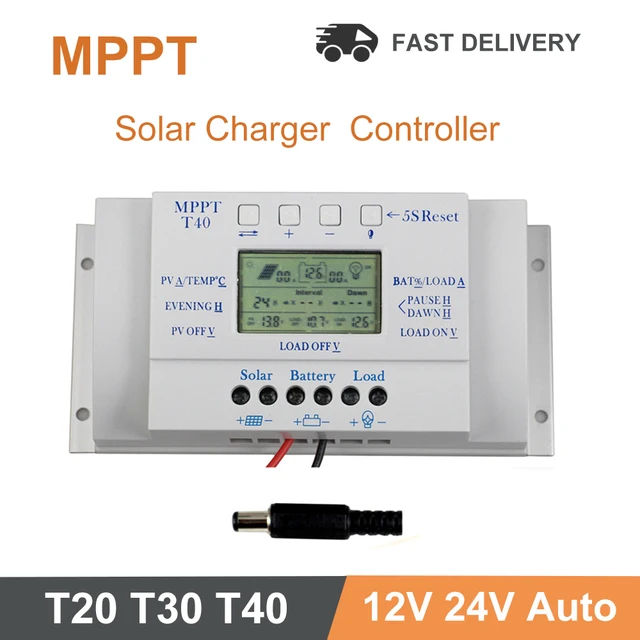

Auto MPPT LCD Display Solar Charger Controller for Lighting System.

Name: Auto MPPT LCD Display Solar Charger Controller for Lighting System.
SKU: 3256805592812096
Availability: InStock

$32.18 – $104.16

Añadir a la lista de deseos

SKU: 3256805592812096 Category:Solar Controller

Description
Additional information

20A 30A 40A 12V/24V Auto MPPT LCD Display Solar Charger Controller for Lighting System Solar Panel Battery Regulator T20 T30 T40

Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Please contact us for checking more details if needed.
Thank you.

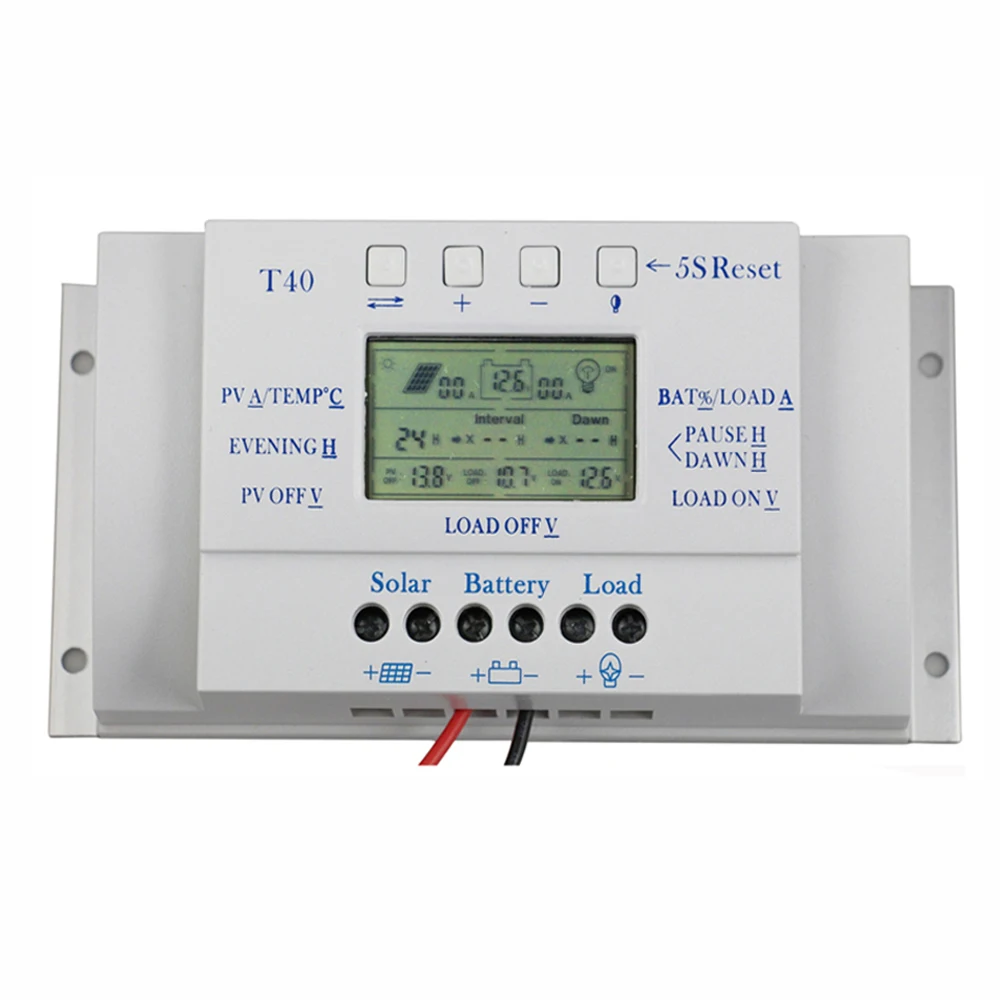

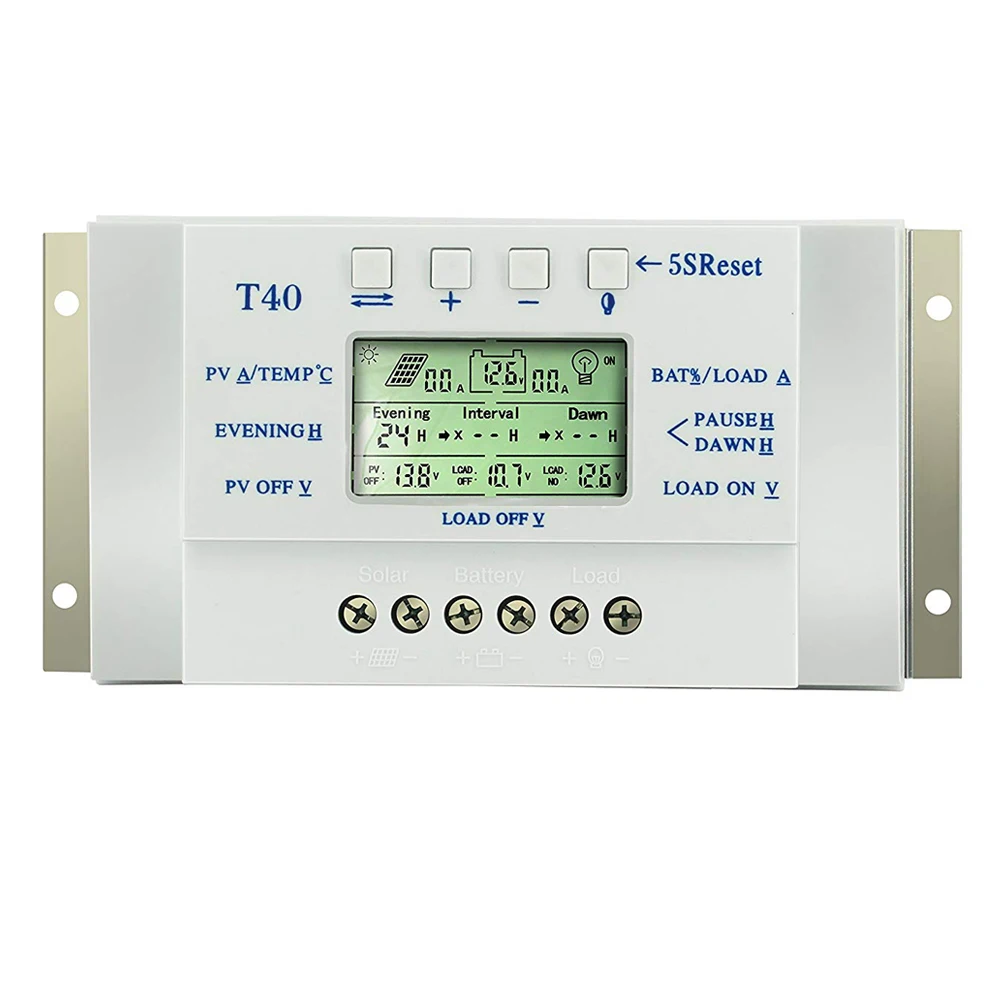

40A T40Solar Charge Controller Dual timer

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has a efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, but also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.

LCD screen display	Battery reverse discharge protection
Easy operation interface	Battery reverse polarity protection
MPPT+ PWM charging mode	Battery under voltage protection
Parameter user can reset Overload	Short-circuit protection
A key to restore the factory settings	USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone
A key to open and close the load	Automatic temperature compensation function

T20 20A Solar Charge Controller Dual timer

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time

Dual Timer function

Specification

Parameters / Model	T10		T20	T30	T40
Maximum power current	12A		20A	30A	40A
Installation Lin(in2)	015″2		0.31″2	0.39″2	0.47″2
Installation Line(AWG)	10(AWG)		8(AWG)	7(AWG)	6(AWG)
Weight	280g		300g	475g	480g
Dimensions	5.62″×3.50″×1.8″(inches)			7.3″3.8″2.4(inches)
System load loss	≤13mA
Loop Buck	≤100mV
Battery float voltage		13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection		10.6V(12V system)/21.2V(24V system)
Battery (under voltage) recovery voltage		12.6V(12V system)/25.2V(24V system)
Charge mode		MPPT+PWM MODE
Operating Temperature		-10°C~60°C
Storage Temperature		-30°C~70°C
Humidity requirements		≤90%, No condensation
Temperature compensation		-4mV/Cell/°C
Temperature Probe (built components)		NTC 100K thermistats
Maximum open circuit voltage of the solar panel		18V-24V(12V system)36V-48V(24V system)
Solar panels maximum open circuit voltage (V)		≤48V

(Cases) 12V system standard configuration

Additional information

is_customized	Yes
Maximum Current	20A 30A 40A
Model Number	T20 T30 T40
Application	Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Origin	Mainland China
Certification	CE
