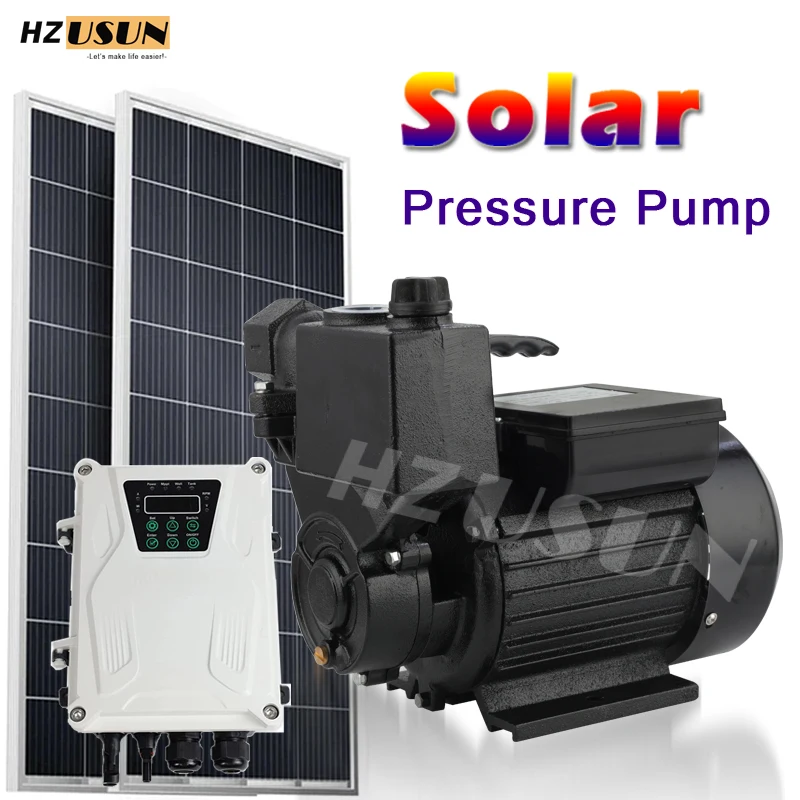

“1HP DC 48V Solar Pressure Water Pump Kit: Self-Priming Surface DC Brushless Centrifugal Pump
$497.11
98 in stock
DC 48 Volt 1HP Solar Pressure Water Pump Kit South Africa for Sale Self-Priming Surface DC Brushless Solar Centrifugal Pump Kit
Attention: Â Price only for Solar Pump with DC MPPT Controller, DO NOT includes solar panels!
          If needcomplete solar pump system, we can also offer, contact us by email:usunhz@gmail.com.
This link Pump Specification as below:
Model: SZB4.0/45-D48/750
Power: 750W
Voltage: DC 48V
Max Flow: 4 m3/h
Max Head: 45m(push water horizontal distance 520m)
Voltage: DC 48V
Max Flow: 4 m3/h
Max Head: 45m(push water horizontal distance 520m)
Outlet Dia.: 1”
Solar panel suggestion: 2 x 500W
Solar panel suggestion: 2 x 500W
Product Description
Instruction for solar surface pump
Solar powered surface booster pumps offer an excellent alternative for applications that only need to run for a few hours a day, A great substitute for generators, eliminating the need for buying, transporting and burning depleting fuel sources.
Water tanks, cisterns, reservoirs or troughs need just a few hours of water pumping per day to keep them topped up, making a solar powered water pump an ideal choice for the job. Solar pumps function at full power for around 4 to 12 hours on a sunny day (each country is different) or at a lower volume during overcast days or when intermittent cloud temporarily obscures the sunlight.

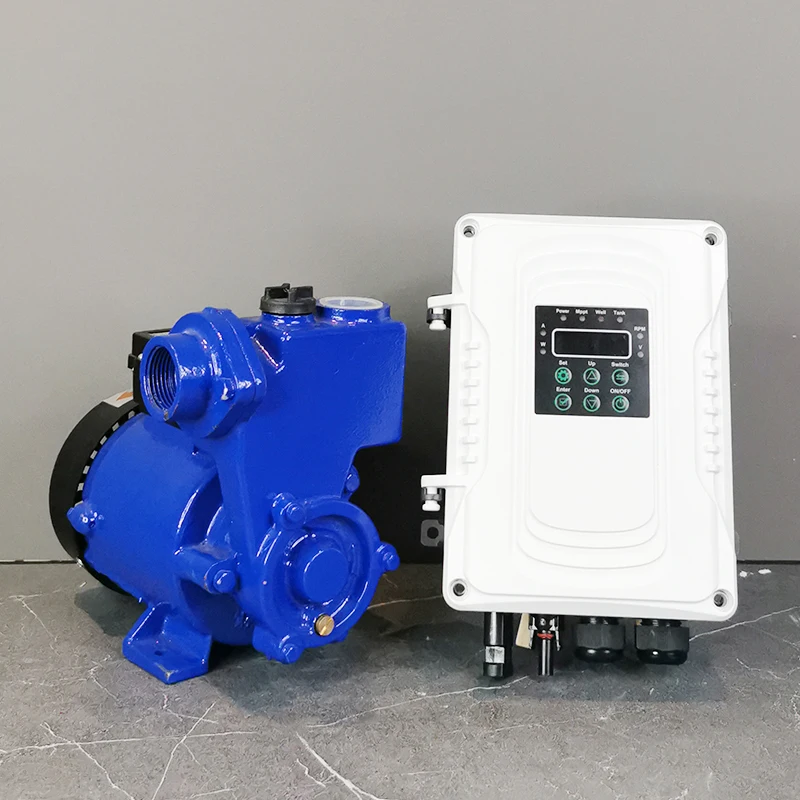

Detailed Images
Advantages of SZB Solar Booster Pump
Application
Model List
Installation Instructions
How to connect pump：
Solar panels connect P+ P-.
Pump connect U V W
Very simple connection.
Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Pump connect U V W
Very simple connection.
Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position

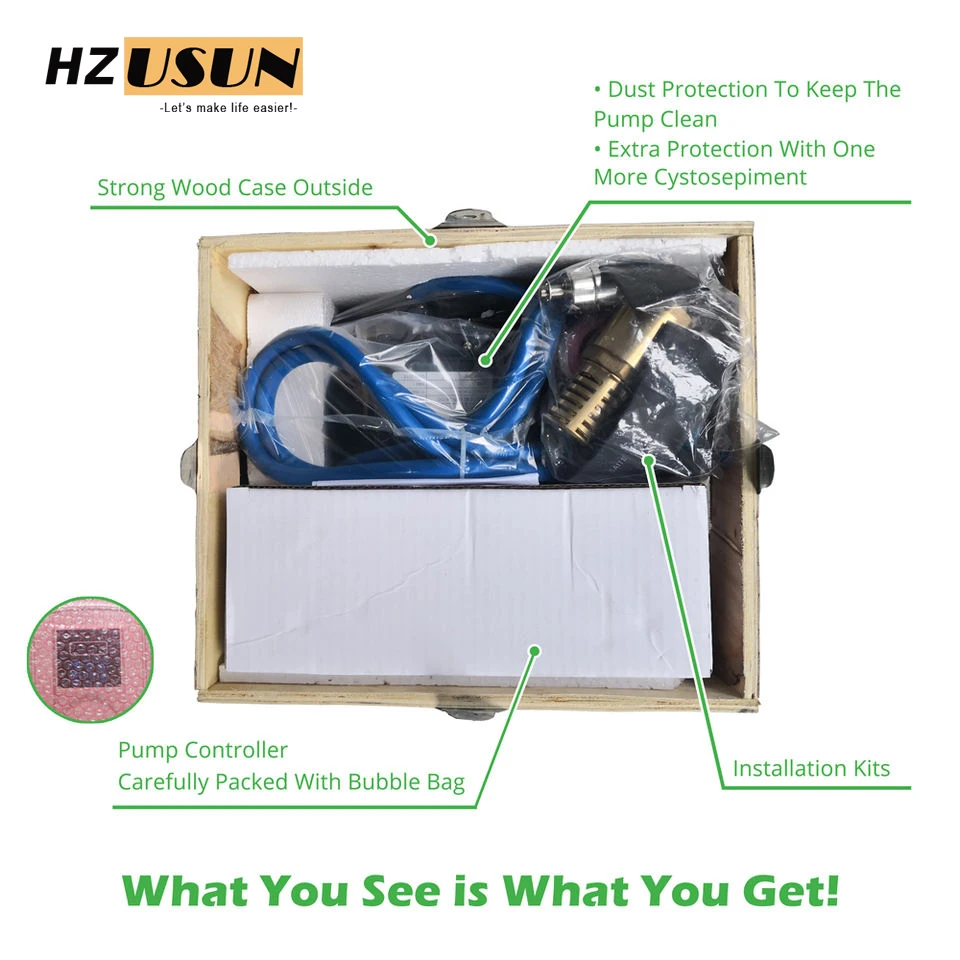

Solar Water Pump System Complete Set:
– 1 x DC solar Pump with 2m cable
– 1 x Pump controller with MPPT function
– 1 x Stainless steel float switch (sensor for the tank)
– 1 x Pump outlet joint connector
– 1 x Splice kit for cable join
– 1 x Splice kit for waterproof
– 1 x Pump controller with MPPT function
– 1 x Stainless steel float switch (sensor for the tank)
– 1 x Pump outlet joint connector
– 1 x Splice kit for cable join
– 1 x Splice kit for waterproof
– 1 x Sand fliter
Customer feedback
Welcome Contact Us to choose suitable solar surface booster pump for you!
Additional information
| Theory | Centrifugal Pump |
|---|---|
| Model Number | SZB4.0/45-D48/750 |
| Standard or Nonstandard | Standard |
| Usage | Water |
| Pressure | High Pressure |
| Fuel | Electric |
| Power | Electric |
| Structure | Single-stage Pump |
| Origin | China |
| Certification | CE |
| Name | DC 48 Volt 1HP Solar Pressure Water Pump Kit South Africa for Sale Self-Priming Surface DC Brushless Solar Centrifugal Pump Kit |
| Voltage | 48 V |
| Max Flow | 4 m3/h |
| Max Head | 45 m |
| Pipe dia. | 1'' |
| Pump Power | 750W |
| Solar Power | 1000W |
| Solar Panel Suggestion | 2 x 500W |
| Package | Wooden case |
