Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL ,lithium ions (It is not suited for nickel metal hydride, or other batteries).

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:

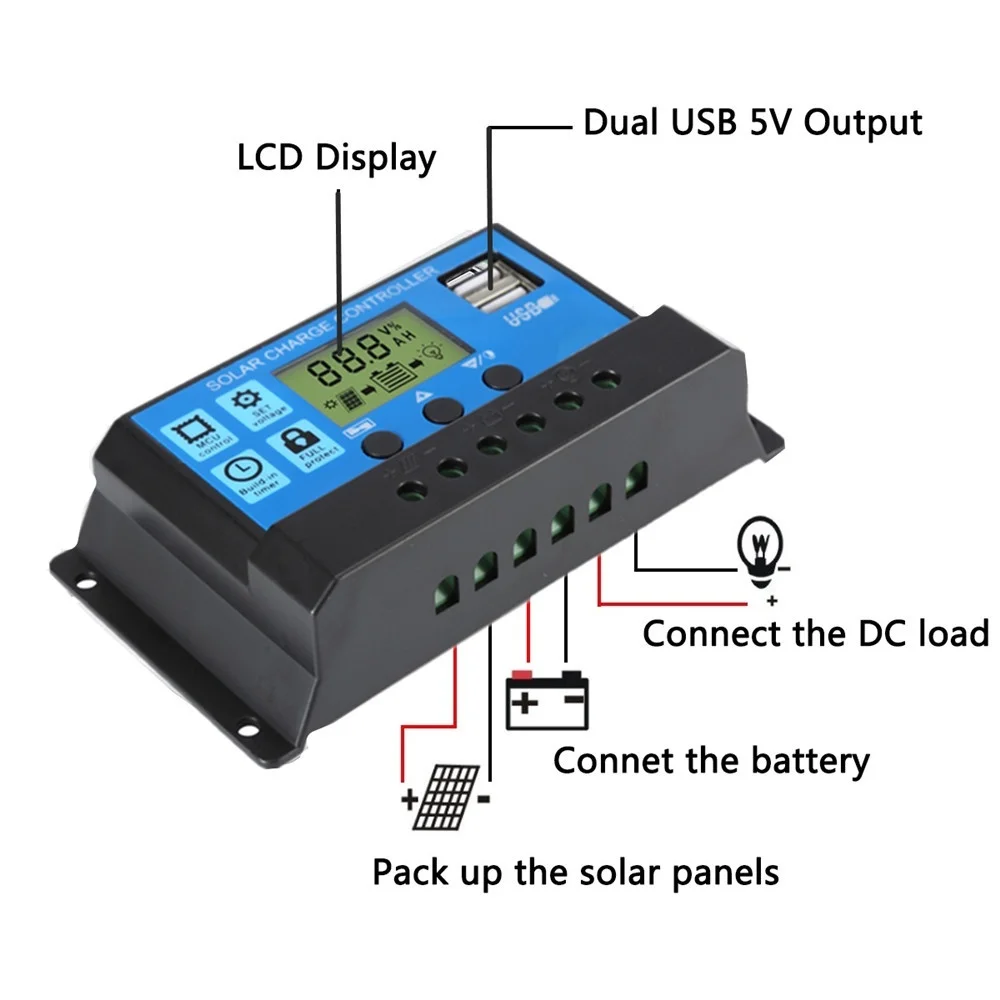

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

Features:

a. Select high-efficiency 158*158mm lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polysilicon, and the overall area is smaller at the same power.

b. Semi flexible design,Graceful appearance, delicate and cabinet;

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

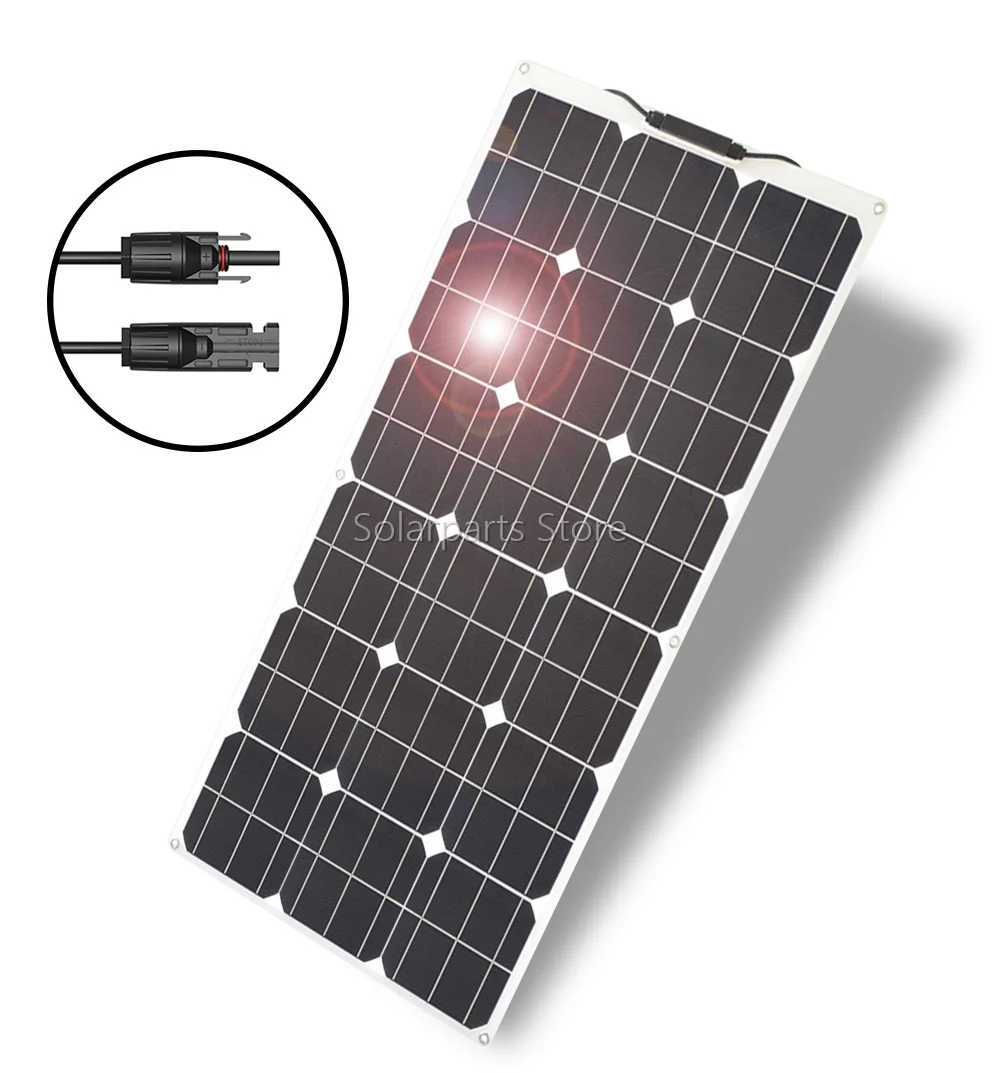

d. Convenience to take , fashionable elegance. PV connector can be suitable to connect controller.

Especially suitable for anywhere can obtain sunshine, realize high-efficient charging, use convenient and safe, environmental protection, energy saving.It is good for promotion, sales, gifts etc.

e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

Solar panel Technician Specification

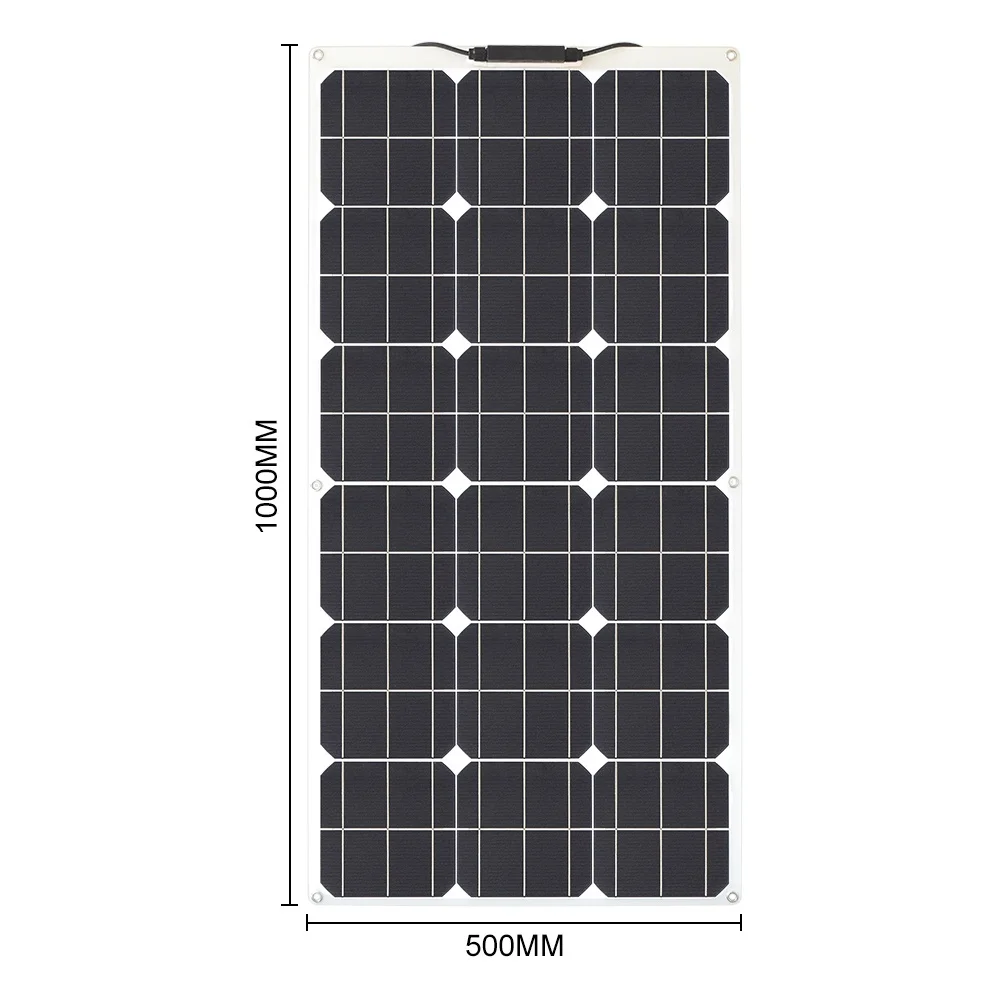

Length	1000mm	Weight	1650 G
Width	500mm	Main material	Monocrystalline silicon
Height	2.5 mm	Frame material	PET+EVA+Cell+TPT



Solar panel Electrical Specification

Performance Under Standard Test Conditions(STC*)

Maximum power	Pmax	100 Wp
Open circuit voltage	Voc	21.6 V
Maximum power point voltage	Vmpp	18 V
Short-circuit current	I sc	6 A
Maximum power point current	I mpp	5.5 A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.

Solar panel Component Material

Cells per module	36	Cell dimensions	158mm*158mm/158*79mm
Cell type	Monocrystalline Silicon	Front	EVA+Plastic Cover

System Intergration Technician

Maximum system voltage SC II	1000 V	Maximum reverse current	10 A
Maximum system voltage USA NEC	600 V	Increased snowload acc. to IEC 61215	5.4 kN/msup2;

Thermak Characteristics

NOCT	47 degC	TC Voc	-0.33 %/degC
TC Isc	0.042 %/degC	TC Pmpp	-0.45 %/degC

Solar panel Extra Specification

PTC rating	100 W	Module efficiency	22.0%
Junction box	IP67	Plus-Sorting*	Pflash ge Pmax
Cable Length	0.9 M	Power tolerance*	+/- 5 %

Controller connection instructions

a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display.

b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable.

c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller.

d According to the controller manual, adjust the parameters you need.

1set 3M Extension cable

1set 3M cable with alligator clip(Connect the battery)

100W solar panel (1pcs 100w solar panel )

Packing listing：

1. 1pcs 100w solar panel

200W solar panel (2pcs 100w solar panel )

Packing listing：

1. 2pcs 100w solar panel

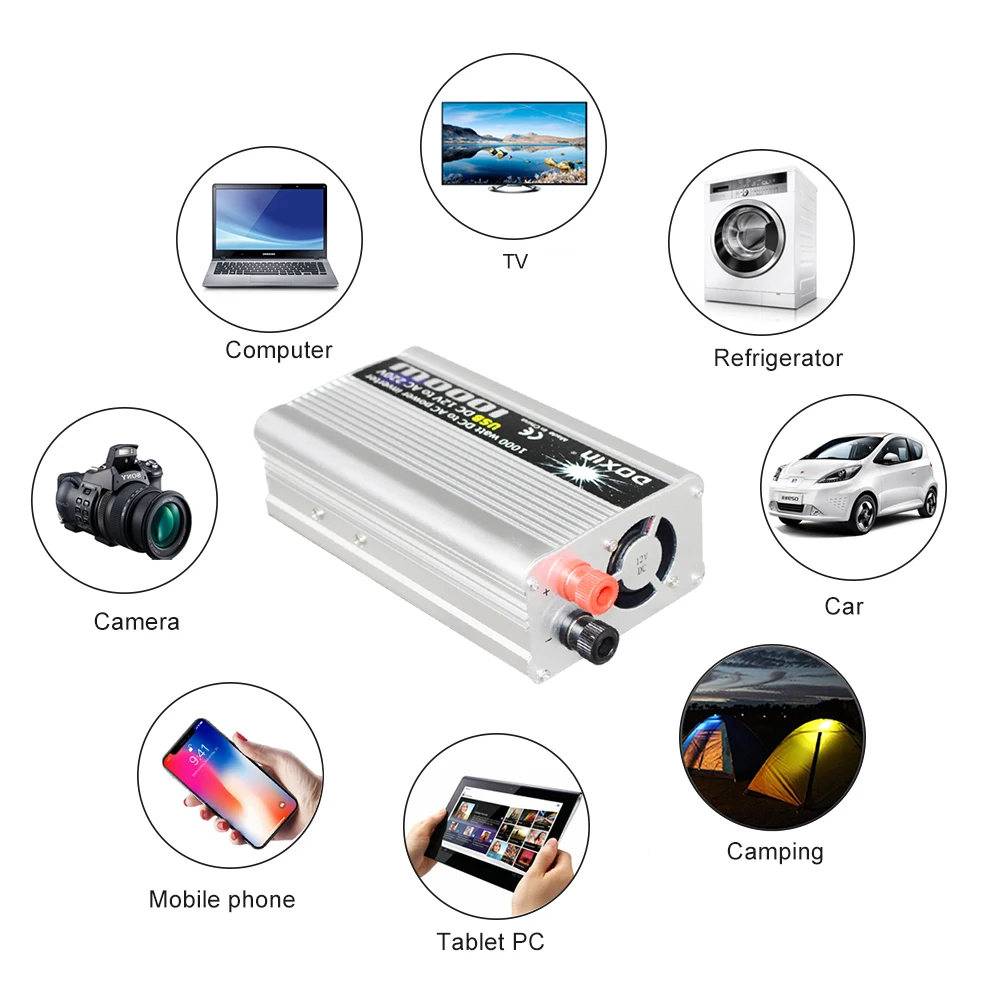

1000W inverter

Packing listing：

1. 1pcs 1000w solar inverter

(The inverter has four specifications to choose from

12V to 110V 1000W inverter
12V to 220V 1000W inverter
24V to 110V 1000W inverter
24V to 220V 1000W inverter)

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.

Black flexible solar panel Specification

Maximum power(Pmax)                           100W

Output tolerance                                       ± 3%

Maximum system voltage                         700V DC

Open circuit voltage(Voc)                         21.6V

Short circuit current(Isc)                           6.11 A

Maximum power voltage(Vmp)                18V

Maximum power current(Imp)                   5.55A

Cell efficiency                                            21%

Operating temperature（NOCT）            45±2℃

Temperature range                                 -40℃～+80℃

Number of cells                                      36pcs

Weight                                                   1800g

Size                                                     1060*530*3mm

Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
