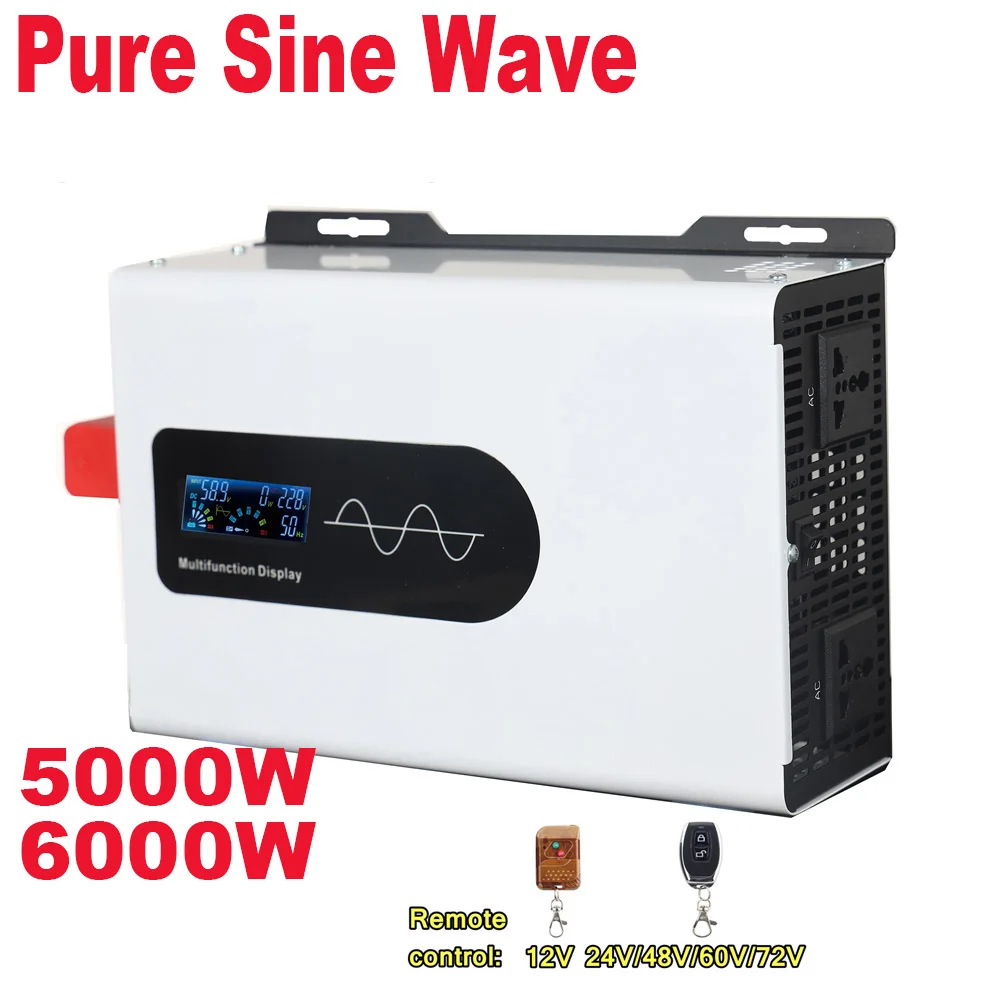

Remote Control Inverter: Pure Sine Wave, DC 12V/24V to AC 220V/230V, 50/60Hz, 5000W/6000W with EU Socket
$203.18 – $567.00
Remote Control Pure Sine Wave Inverter DC 12V/24V to AC 220V 230V 50/60Hz Voltage Display 5000W/6000W Car Inverter EU Socket
Specification
Peak Power: 5000W / 6000W
Continuous powe:2500W / 3000W
Output voltage:110V,120V,220V,230V,240V(±10%)
Input voltage: 12V/24V/48V/60V/72V
Output frequency: 50Hz±2H/ 60Hz±2H
Socket: Universal(Commonly used in sockets in all countries)
Conversion Efficiency: >90%
Over Thermal:Shut Off Output Automatically
Input low voltage protection : 20Vdc±0.3V
Input high voltage protection: 30Vdc±0.3V
Recovery voltage : 24V(25.5V±0.3)
Over temperature protect: 80°±5°
Start :Soft Start
Fuses:Short Circuit
Protection:Overload, Short Circuit, Overtemp, Reverse Polarity, Under/Over Voltage
(To customize the socket, please contact customer service)
Pls note: only the solar inverter,not including the solar controller!!!
PLEASE NOTE:
1.Please ensure that the rated power is higher than the appliance you want to apply.
2. If you want to run several devices at the same time, you should refer to the total wattage.
3. If you want to run the inductive load for a long time, choose the  Pure sine wave inverter .
4. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.
5. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
6. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drill, washing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside. Please make sure the constant power of our inverter meets your need before order, or consult us for more details.
Troubleshooting
1. The inverter is not working.
A. Check whether the plug is inserted in place and whether it is loose.
B. Whether the inverter switch is turned on.
C. Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.
2. Insufficient output power of the inverter can only drive low-power electrical appliances
A. The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If you change to another car, the inverter is normal, and you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket shall not exceed a load of 150W.
D. If it is an external battery, thicken the lead to shorten the lead length
3. The inverter does not work and the FALT light is off
A. The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of power appliances
Additional information
| is_customized | Yes |
|---|---|
| Output Frequency | 50HZ/60HZ |
| Weight | 5-6KG |
| Output Type | single |
| Output Power | 1 – 200KW |
| Model Number | Pure Sine Wave Inverter |
| Type | DC/AC Inverters |
| Origin | Mainland China |
| Certification | CE |
| Color | White |
| Continuous Output Power | 5000W 6000W |
| Peak Output Power | 2500W 3000W |
| Output Voltage | 110V,120V,220V,230V,240V |
| Input Voltage | 12V,24V,48V,60V,72V |
| Feature 1 | inverter 12v to 220v for cars |
| Feature 2 | inverter 12v 120v |
| Feature 3 | Inverter 5000W |
| Feature 4 | Car voltage converter |
| Feature 5 | Transformer 220v 12v |
| Feature 6 | 12v to ac 220v power inverter |
| Feature 7 | hybrid solar inverter |
