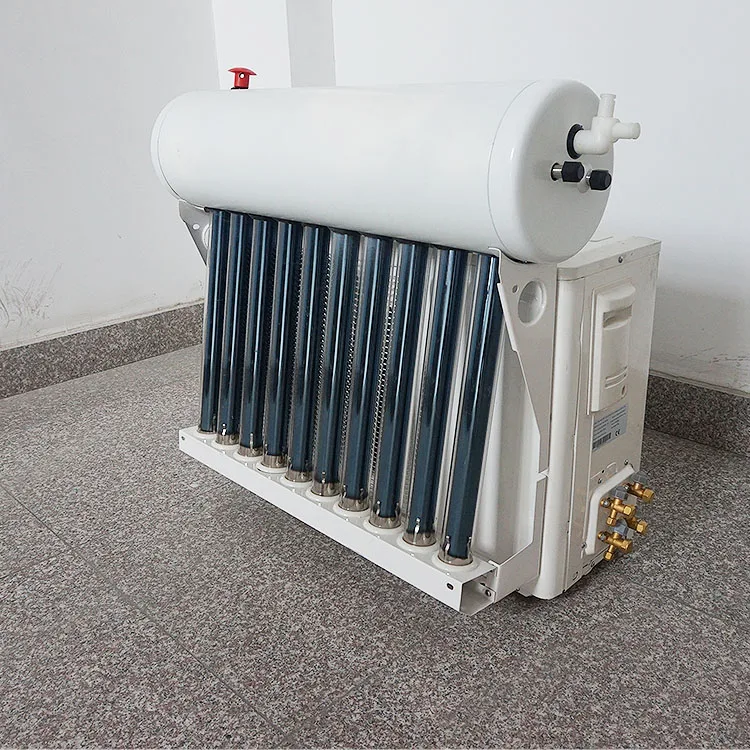

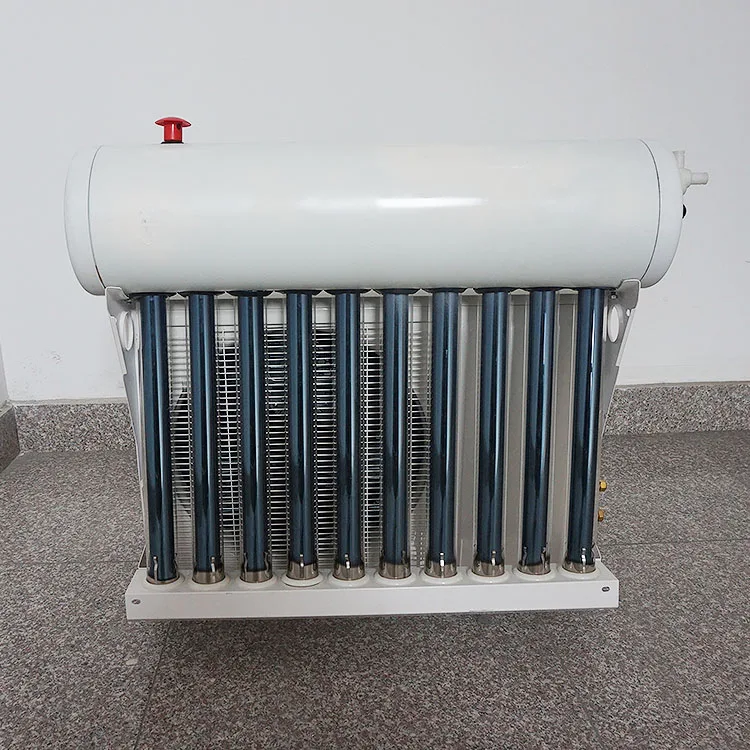

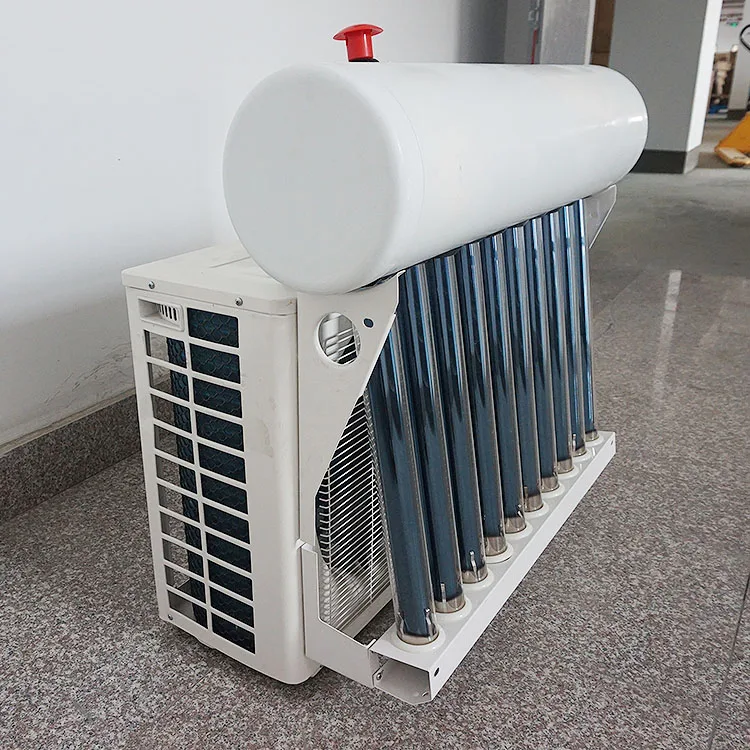

9000btu 12000btu 18000btu 24000btu 100% Solar Air Conditioning In Split Wall Mounted Air Conditioners
|
||||||||||||||
Function
|
Cooling Heating
|
Cooling Heating
|
Cooling Heating
|
Cooling Heating
|
||||||||||
Horsepower
|
P
|
1
|
1.5
|
2
|
3
|
|||||||||
Ton
|
0.8
|
1
|
1.5
|
2
|
||||||||||
Capacity
|
Cooling
|
BTU/h
|
9000
|
12000
|
18000
|
24000
|
||||||||
Heating
|
BTU/h
|
9500
|
12500
|
18500
|
24500
|
|||||||||
EER/COP
|
W/W
|
3.6
|
3.4
|
3.5
|
3.3
|
|||||||||
Power Supply
|
ph,V,Hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
|||||||||
Power Input
|
Cooling
|
W
|
825
|
1180
|
1660
|
2240
|
||||||||
Heating
|
W
|
780
|
1080
|
1540
|
1860
|
|||||||||
Current Input
|
Cooling
|
A
|
4.2
|
5.9
|
7.8
|
9.8
|
||||||||
Rated Current
|
Heating
|
A
|
5.9
|
7.9
|
12.3
|
13
|
||||||||
Refrigerant
|
R410A
|
R410A
|
R410A
|
R410A
|
||||||||||
Indoor Unit
|
Airflow Volume
|
m³/h
|
450
|
550
|
900
|
950
|
||||||||
Sound Pressure Level
|
dB(A)
|
30-36
|
36-42
|
39-45
|
42-46
|
|||||||||
Outline Dimension (W×H×D)
|
mm
|
790×280×200
|
790×280×200
|
890×300×210
|
1020×320×260
|
|||||||||
Pakage Dimension (W×H×D)
|
mm
|
865×330×260
|
870×350×275
|
980×370×300
|
1100×390×320
|
|||||||||
Gross Weight
|
kg
|
9
|
11
|
13
|
14
|
|||||||||

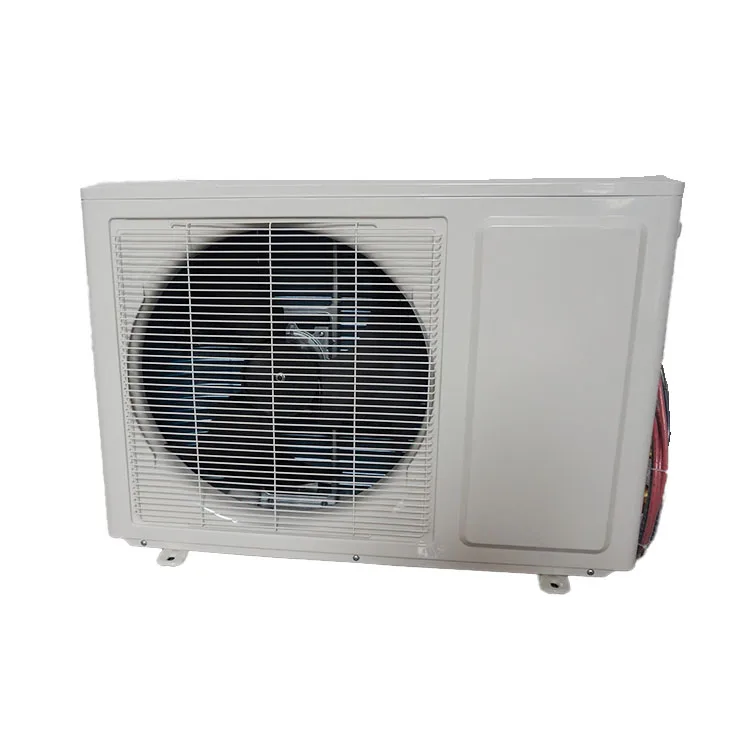

Outdoor Unit
|
Sound Pressure Level
|
dB(A) |
45
|
48
|
55
|
55
|
||||||||
Piping Connection
|
Gas
|
mm
|
φ9.52
|
φ12.7
|
φ12.7
|
φ16
|
||||||||
Liquid
|
mm
|
φ6.35
|
φ6.35
|
φ6.35
|
φ6.35
|
|||||||||
Outline Dimension (W×H×D)
|
mm
|
600×250×450
|
780×260×550
|
850×300×600
|
850×320×700
|
|||||||||
Pakage Dimension (W×H×D)
|
mm
|
760×350×550
|
860×350×600
|
950×400×680
|
990×400×690
|
|||||||||
Gross Weight
|
kg
|
29
|
35
|
43
|
54
|
|||||||||
Loading Quantity
|
40`GP
|
sets
|
126
|
105
|
75
|
68
|
||||||||
40`HQ
|
sets
|
308
|
258
|
185
|
165
|

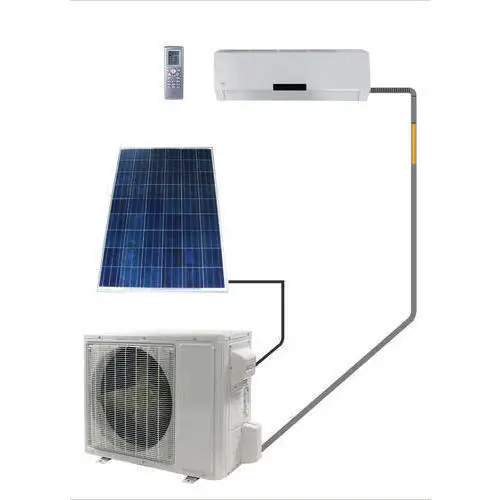

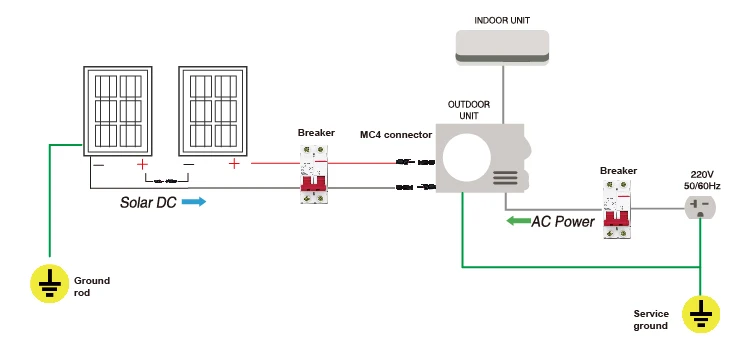

A solar DC air conditioner is an air conditioning system that uses solar energy to power its DC motor. Unlike traditional air conditioning systems that rely on AC power, which requires an inverter to convert DC power from solar panels to AC power, a DC air conditioner can run directly on DC power. DC air conditioners have several advantages over traditional AC air conditioners. For one, they are more energy-efficient since they do not require the energy loss that occurs during the DC to AC conversion process. Additionally, they are more environmentally friendly since they do not produce greenhouse gases or other harmful emissions. Solar DC air conditioners can be either window units or split systems. Window units are self-contained and can be mounted on a window or wall, while split systems have an indoor unit and an outdoor unit connected by refrigerant lines. To power a solar DC air conditioner, you will need a solar panel system with enough capacity to meet the energy demands of the air conditioner. The size of the solar panel system required will depend on the size and capacity of the air conditioner, as well as factors such as the climate and the amount of sunlight available in your area. Overall, solar DC air conditioners are a great option for those looking to reduce their energy consumption and environmental impact while still enjoying the comfort of air conditioning.

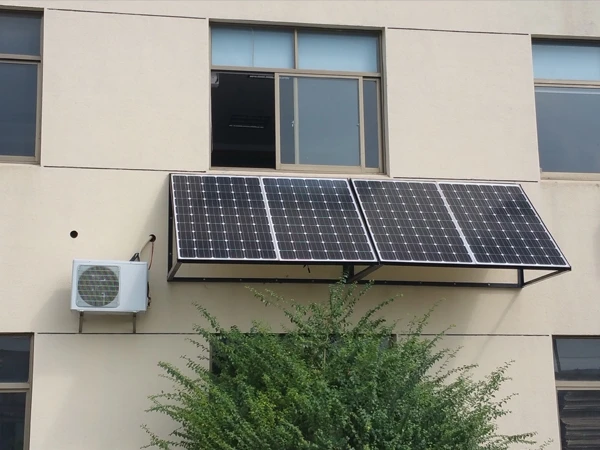

Solar air conditioning can be applied in various settings where traditional air conditioning is used, such as homes, offices, schools, hospitals, hotels, and other commercial buildings. It is particularly useful in areas with abundant sunlight and high energy costs, as it can significantly reduce electricity bills. In addition, solar air conditioning is a good option in remote areas or areas with unreliable power grids, where traditional air conditioning systems may not be feasible due to the lack of electricity infrastructure. In these situations, solar air conditioning can be powered by standalone solar panel systems, making it a more practical and cost-effective solution. Solar air conditioning is also an excellent option for environmentally conscious individuals or organizations looking to reduce their carbon footprint. By using renewable energy from the sun, solar air conditioning systems can help reduce greenhouse gas emissions and other harmful pollutants associated with traditional air conditioning systems. Overall, solar air conditioning can be used in a variety of settings and is an excellent choice for those looking to reduce energy consumption, save money, and promote sustainability.
Additional information
Origin | Mainland China |
---|---|
Applicable Industries | Home Use |
Condition | New |
Type | AIR COOLER |
Place of Origin | Shanghai, China |
Brand Name | Gainjoys |
Operating Voltage | 230 VAC |
Mounting | Wall / Window Mount |
Warranty | 3 years |
Dimension(L*W*H) | 792*279*195 |
Key Selling Points | R410a |
Airflow | 560 m³/ h |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Pressure vessel |
Weight (KG) | 66 KG |
Product name | Solar Dc Air Conditioning |
Function | Cooling and Heating |
Power supply | 220~240V/1ph/50Hz |
Keyword | Solar Dc Air Conditioning |
Refrigerant | R410a |
Cop | 3.2-3.4 |
Power Source | Solar Power |
Certification | CE |
Cooling capacity | 18000BTU |
Color | White |
